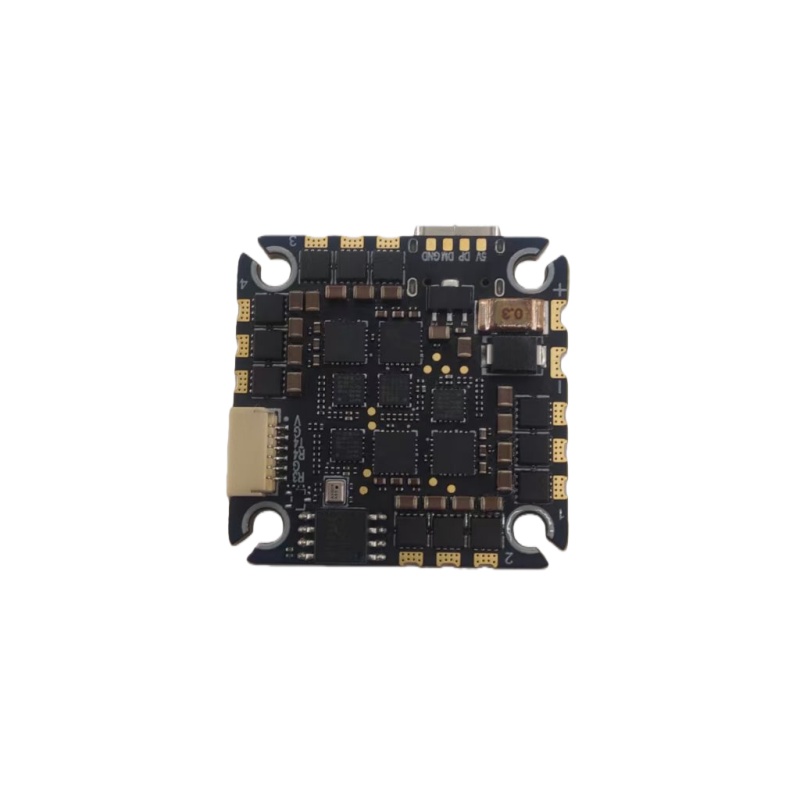

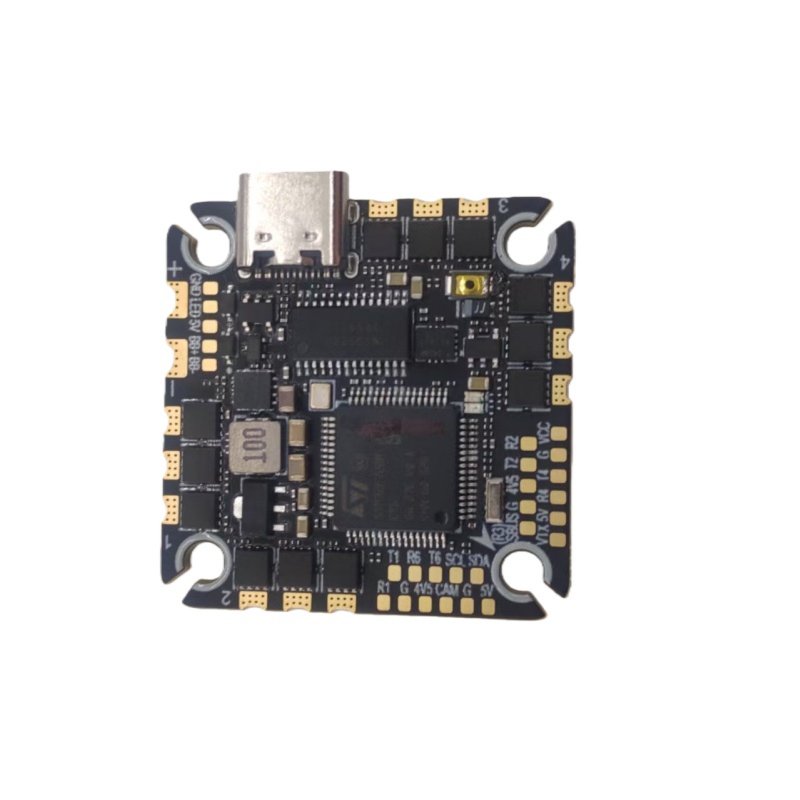

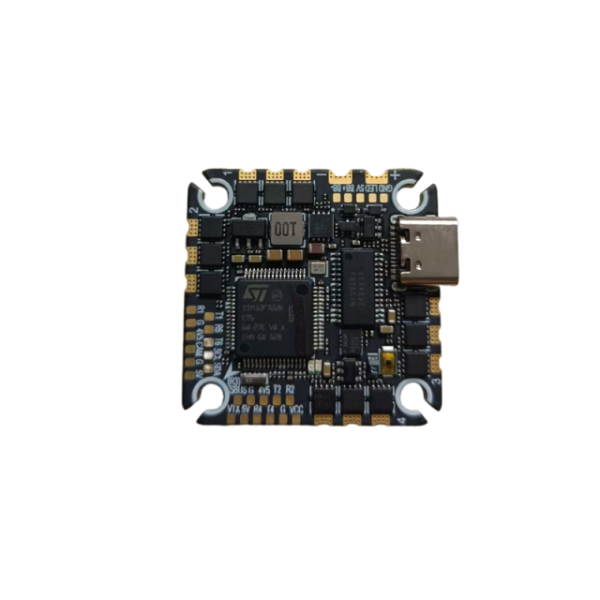

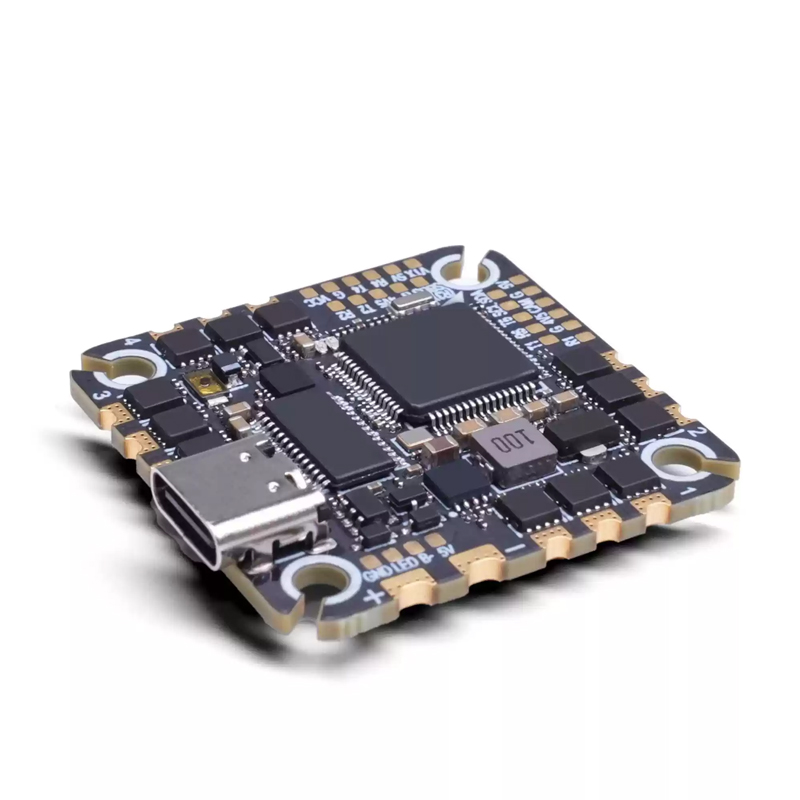

The F405 AIO 40A is a compact all-in-one flight controller that seamlessly integrates a powerful STM32F405 flight controller with four robust 40A ESCs. Designed for 2-6S LiPo setups, it delivers a complete and clean solution for high-performance FPV drones.

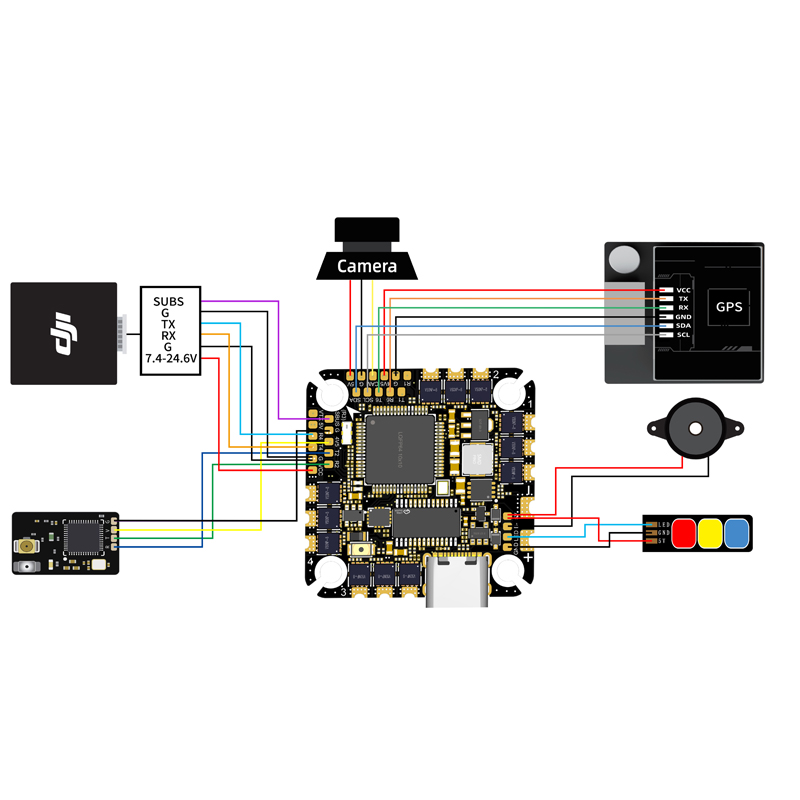

This feature-rich board is equipped with the latest ICM-42688 gyro for exceptional flight stability, a 16M Black Box for data logging, a barometer, and GPS support. With four UARTs, support for all modern receivers and video systems, and multiple BEC outputs, it offers extensive connectivity for advanced builds, all within a dense 25.5×25.5mm footprint.
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$99.00
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Product model | F405 AIO 40A |
| MCU | STM32F722RET6/STM32F411RET6STM32F405RGT6 |
| Input voltage | 2-6S LiPo |
| Gyroscope | ICM-42688 |
| OSD chip | AT745GE |
| Black box | 16M |
| Barometer | SPL06 |
| GPS | Support |
| UART Serial port | Four |
| Receiver | ELRS/CRSF/SBUS/Prsky/Putaba /Flysky/TBS Crossfre/DSMX |
| High-definition/analog image transmission | Support |
| BBC Output | 4.5V/1A | 5V/2A |
| Colorful lights | Support |
| Buzzer | Support |
| USB Type | Type-C/Support USB extension |
| ESC MCU | EFMBBB51F16G |
| Driver chip | CSC2388/SAG288/FD6288 |
| PCB Color | Matte black |
| Fixed hole spacing | 25.5*25.5mm/φ4mm |
| Dim(L * W * H) | 34.5*33*7mm |

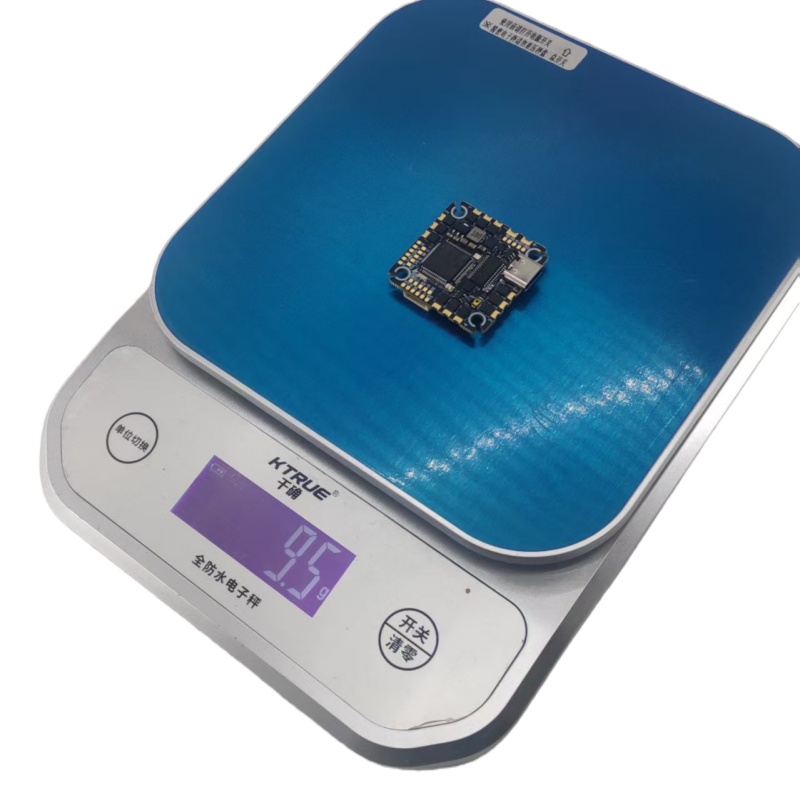

| Weight | 9.5g |
