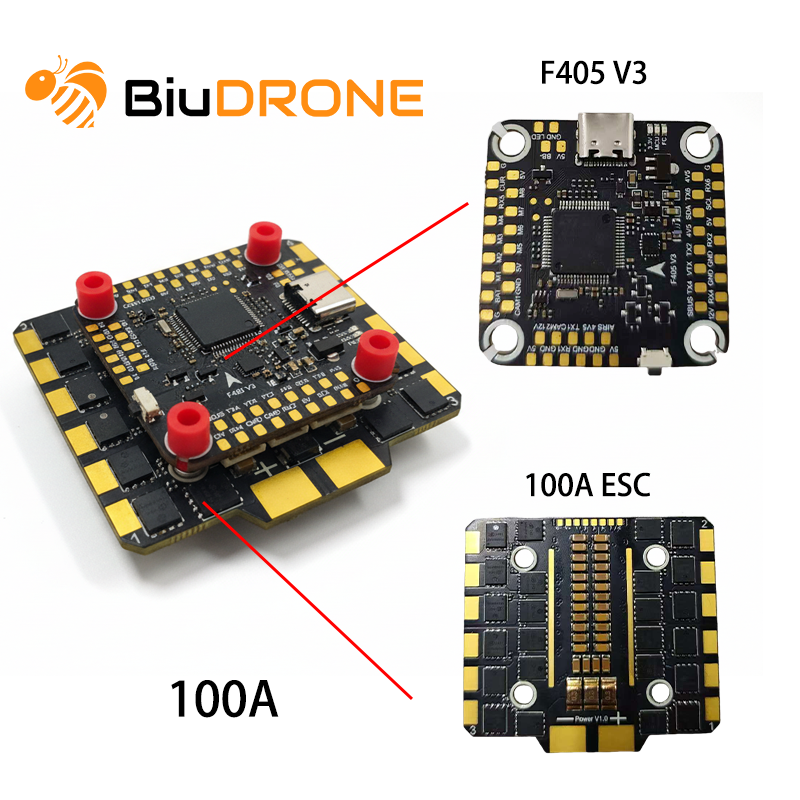

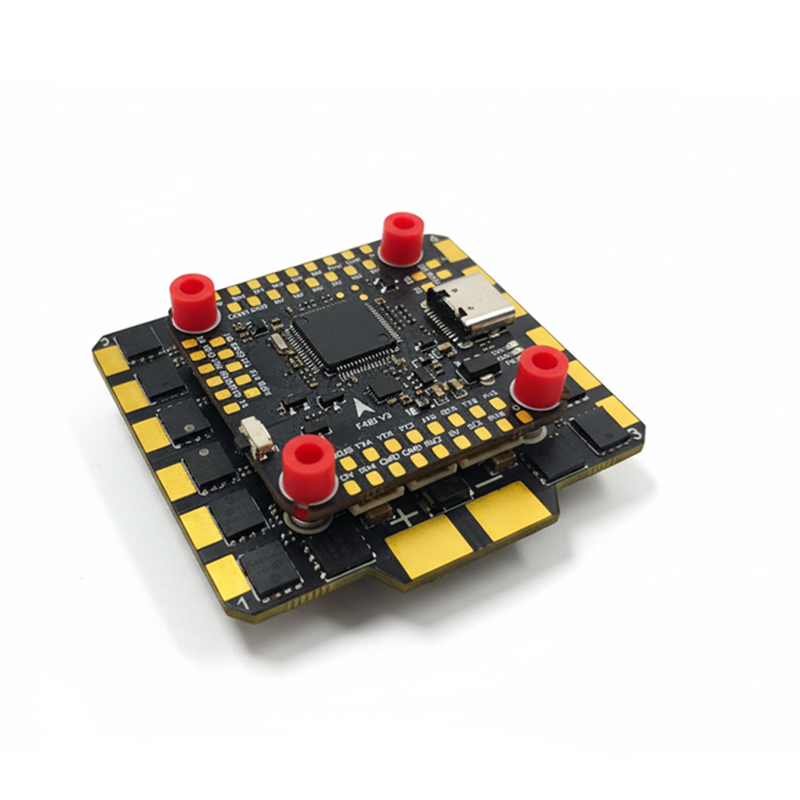

| Product model | F405 V3 flight controller |
| MCU | STN32F405RCT6 |
| Firmware name | BiuDrone405V3 |
| Support firmware | Betaflight (Factory default), INAV, ArduPilot |
| Input voltage | 3-8S LiPo |
| Gyroscope | ICM-42688 |
| OSD chip | AT7456E |
| Black box | 16M |
| Barometer | SPL06 |
| GPS Interface | Support |
| UART Serial Port | 6 |
| Telemetry input | RS (UART5) |
| Receiver | ELRS/CRSF/SBUS/Trsky/Putaba /Flysky/TBS CrossPre/DSAX |
| Image transmission | Support |
| signal output | 8CH |
| BBC output | 4.5V/1A | 5V/2.5A | 12V/2.5A |
| Buzzer | Support |
| USB Type | Type-C |
| PCB Color | Matte black |
| Fixed hole spacing | 30.5*30.5mm/φ4mm |
| Dim(L * W * H) | 39.8*38.7*6mm |
| Weight | 9.5g |

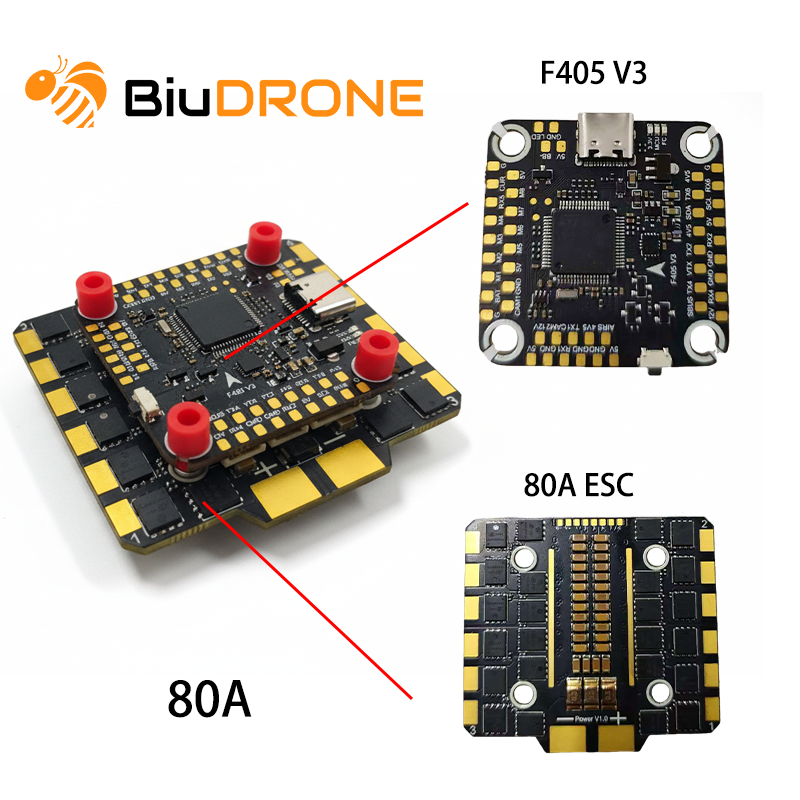

| Product model | BLS 80A 4-in-1 EsC |
| Input voltage | 3-8S LiPo |
| MCU | EFM8BB51F16G |
| Support | Galvanometer |
| firmware | BLHeli S EX40(Factory default)Bluejay E_X_40 |
| Driver chip | CSC2388/SA6288/FD6288 |
| Continuous current | 80A(Test : Good heat dissipation) |
| Instantaneous current | 90A(Test : Good heat dissipation) |
| Standby current | <15mA |
| BEC output voltage/current | NO BEC |
| TVS protective diode | Yes |
| ESC/Motor Protocol | PWM、Oneshot125、0neshot42、Multishot、Dshot150、Dshot300、Dshot600 |
| Galvanometer ratio | 100 |
| PCB Color | Matte black |
| Dim(L W H) | 58*53.2*6.4mm |
| Fixed hole spacing | 30.5*30.5mm |
| Weight | 30g |
| Select |
F722 V3 8S 100A ,F722 V3 8S 80A |
|---|
