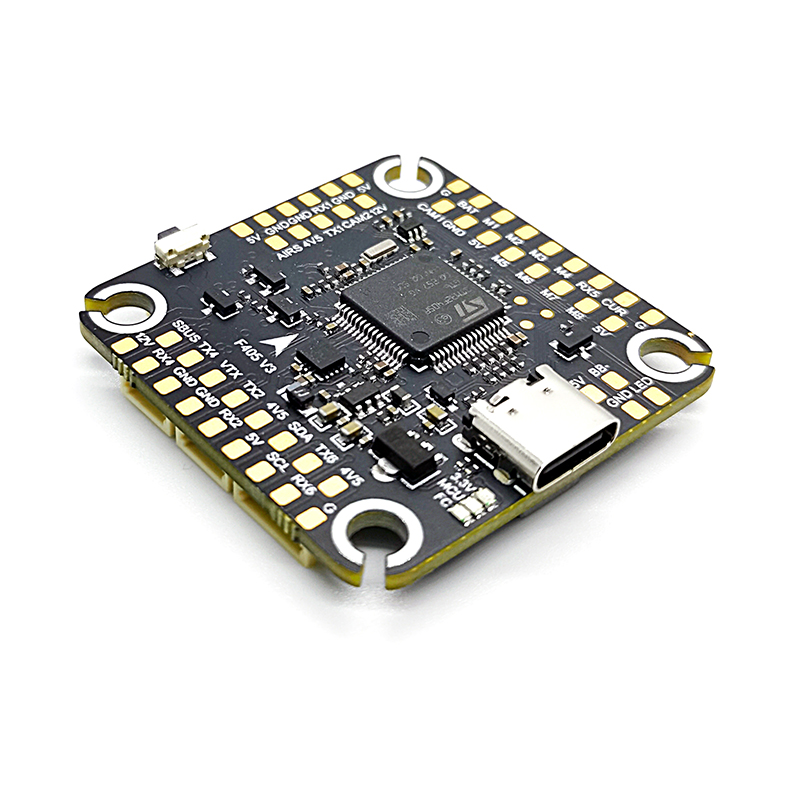

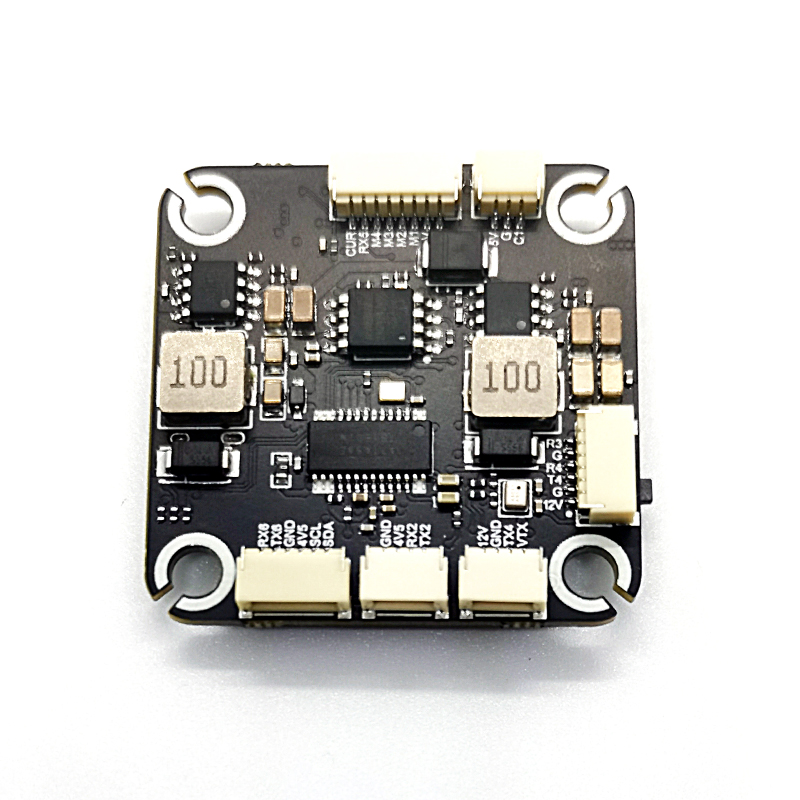

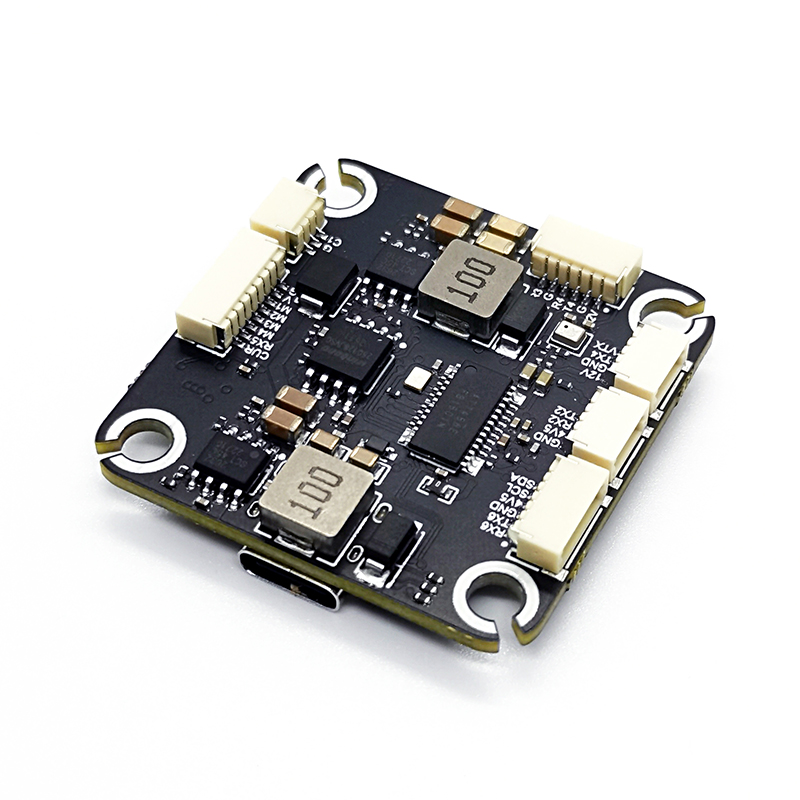

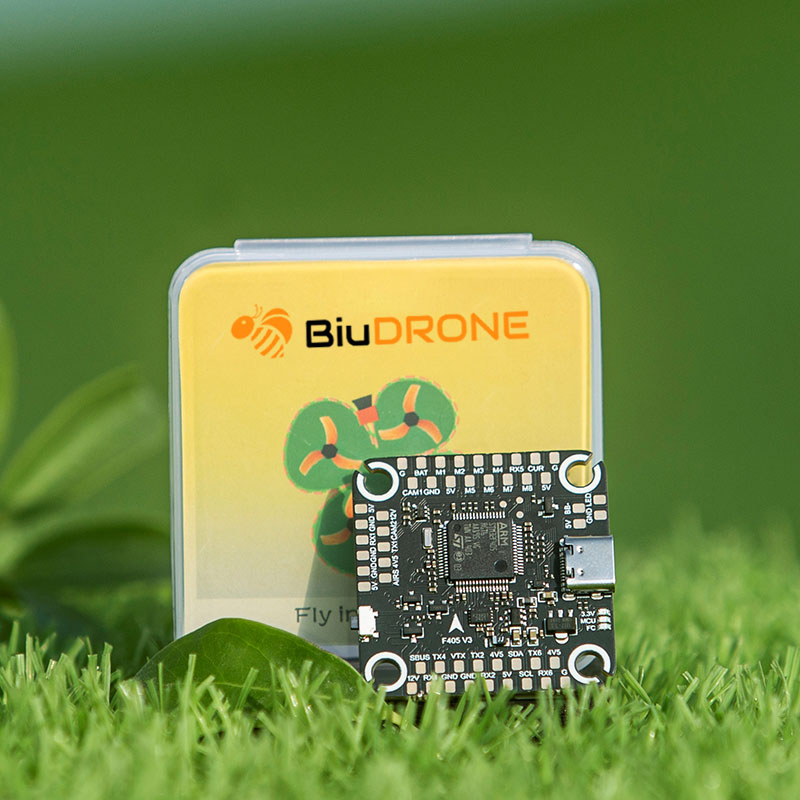

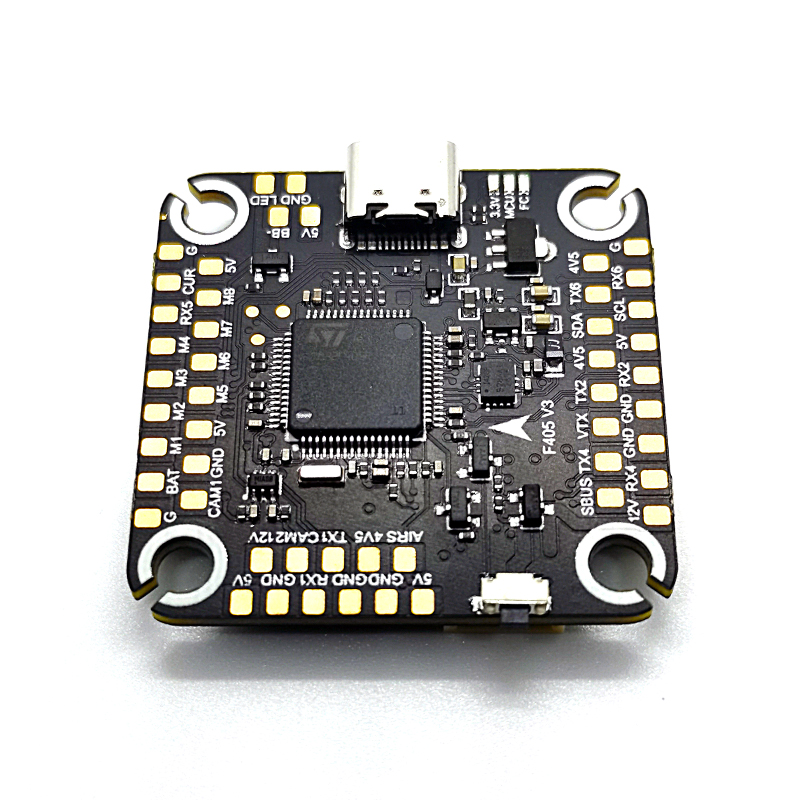

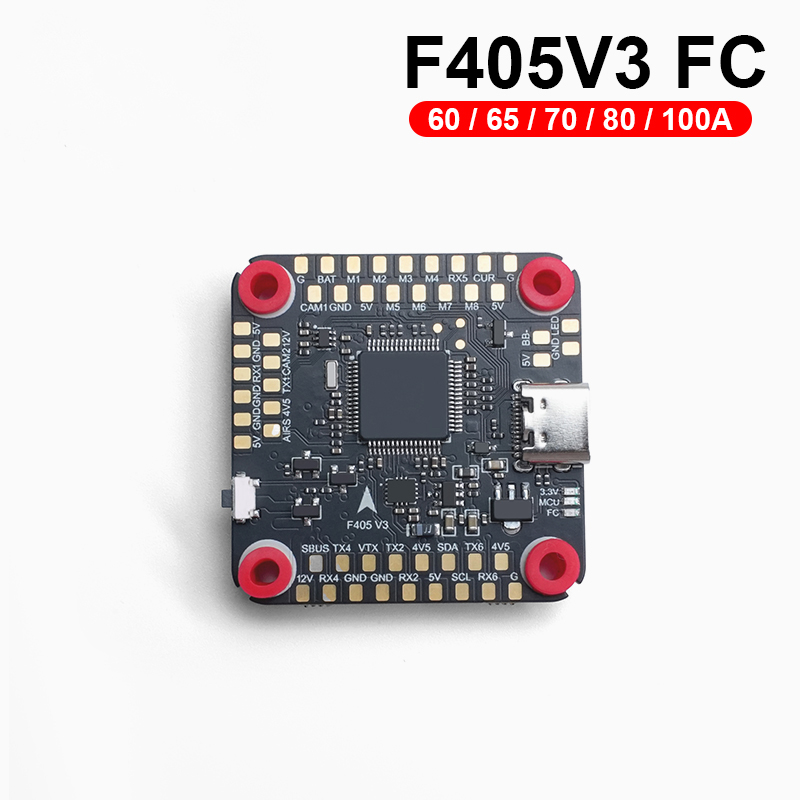

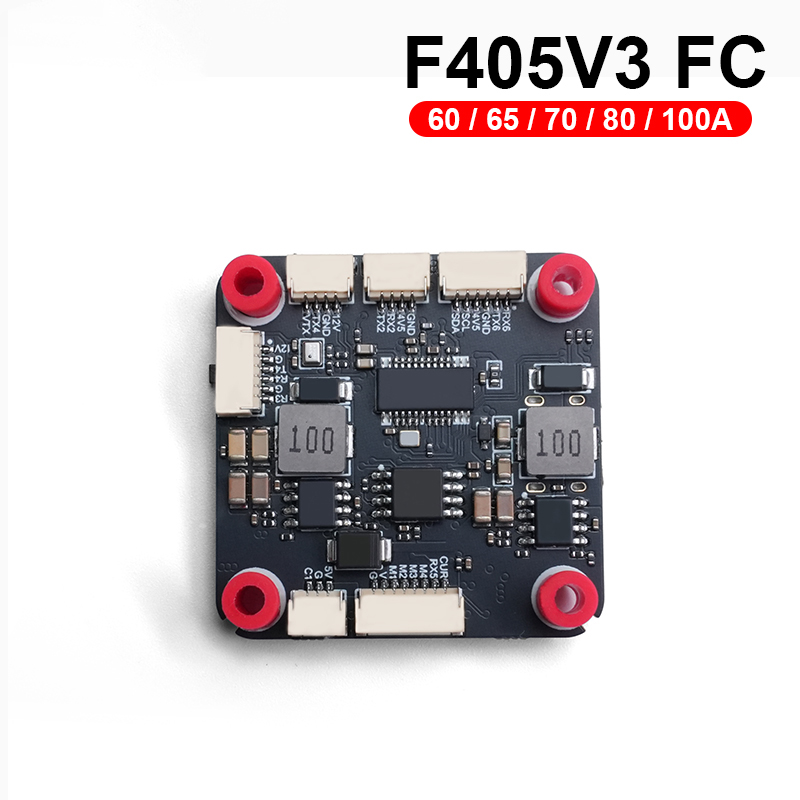

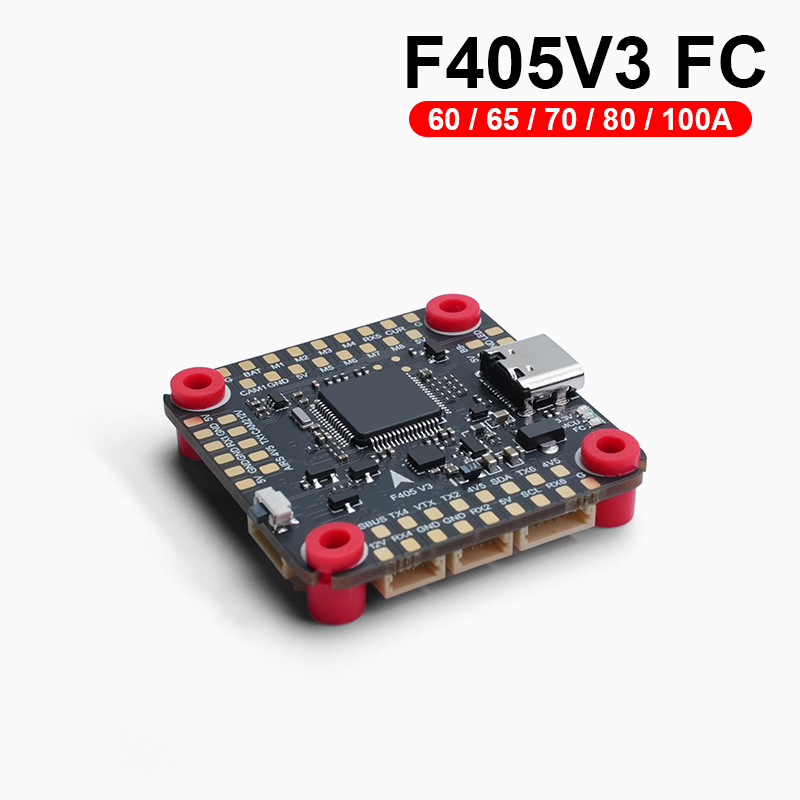

The Biudrone F405V3 is a compact, high-performance flight controller engineered for demanding FPV builds. Its powerful STM32F405 processor and robust 6-layer PCB provide a reliable foundation, while key features enhance both performance and convenience:
Dual ICM-42688 Gyros: Deliver exceptional flight stability and sensor redundancy.
Clean Power & Video: Industrial LDOs and Murata capacitors ensure stable voltage and minimal noise.

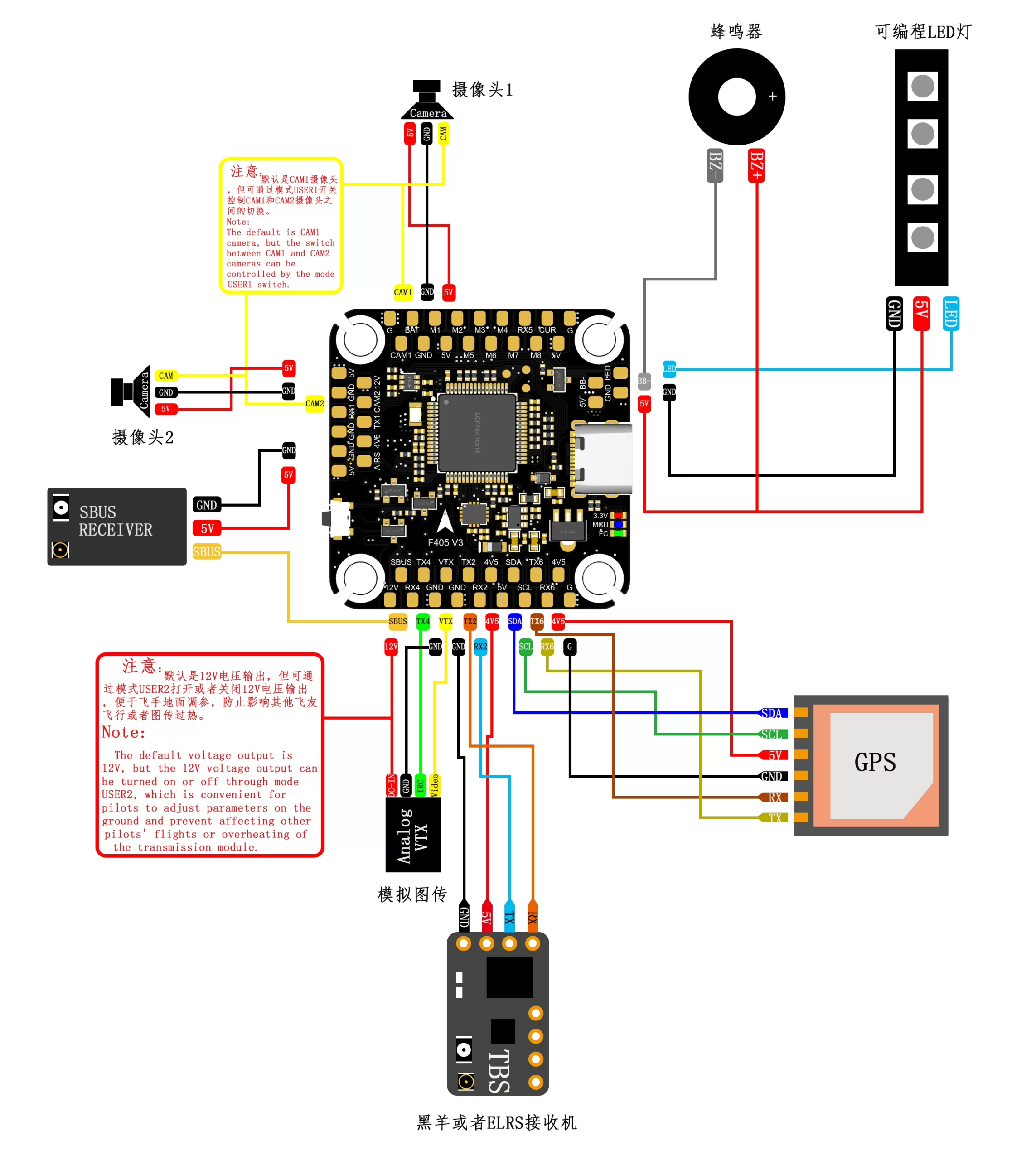

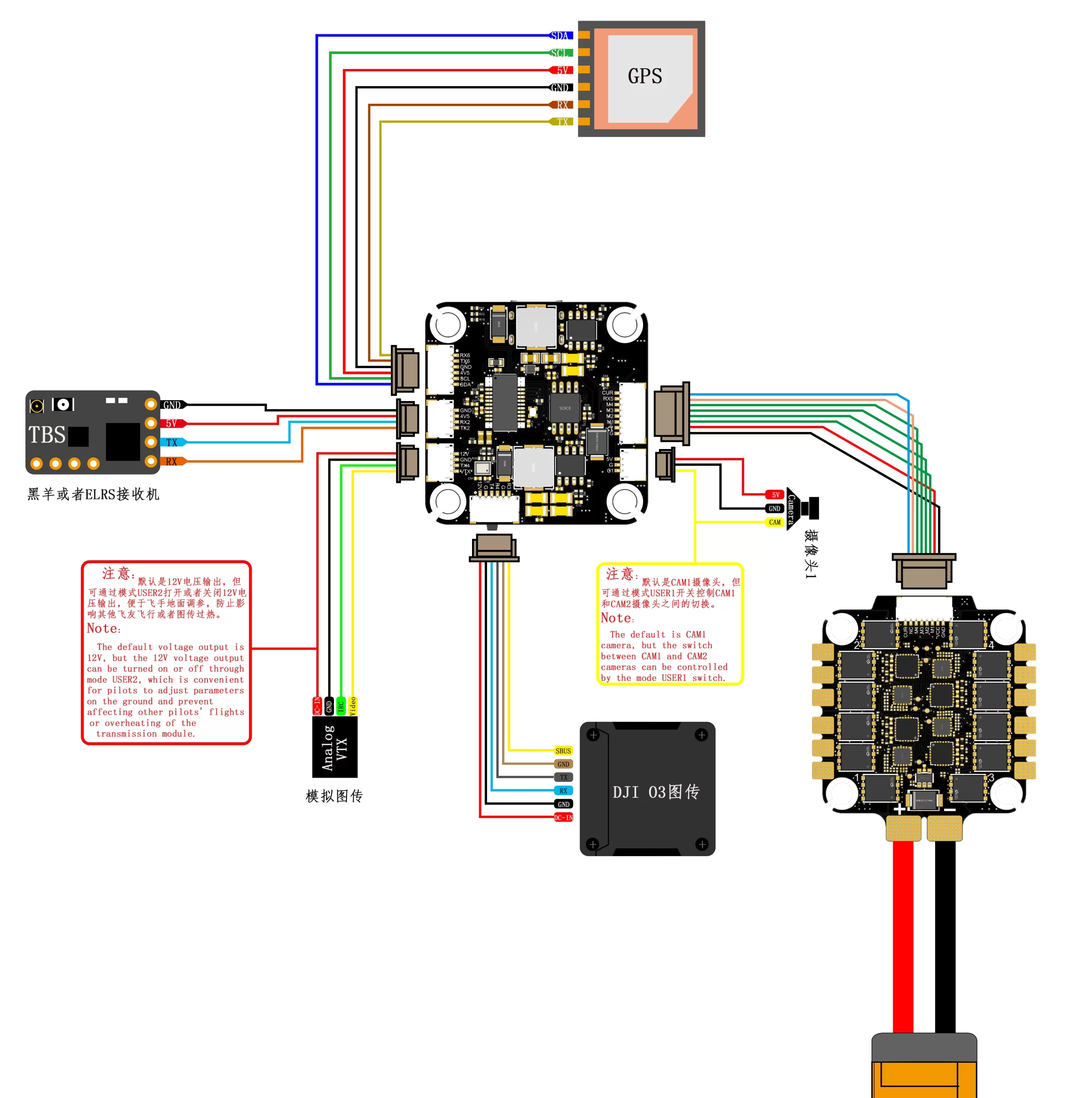

Plug-and-Play DJI Integration: A dedicated socket allows for a solder-free DJI Air Unit installation.
Enhanced Control: Remotely switch your VTX power and control LED strips via an RC channel.
Extended Versatility: With 8 motor outputs, it supports builds from quadcopters to octocopters.
Ideal for compact and lightweight drones, the F405V3 combines top-tier performance with practical, user-focused design.
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$50.00
Pick up from the Woodmart Store
To pick up today
Free
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
Warranty 1 year
Free 30-Day returns
Payment Methods:
| Product model | F405 V3 flight controller |
| MCU | STN32F405RCT6 |
| Firmware name | BiuDroneV3 |
| Support firmware | Betaflight (Factory default), INAV, ArduPilot |
| Input voltage | 3-8S LiPo |
| Gyroscope | ICM-42688 |
| OSD chip | AT7456E |
| Black box | 16M |
| Barometer | SPL06 |
| GPS Interface | Support |
| UART Serial Port | 6 |
| Telemetry input | RS (UART5) |
| Receiver | ELRS/CRSF/SBUS/Trsky/Putaba /Flysky/TBS CrossPre/DSAX |
| Image transmission | Support |
| signal output | 8CH |
| BBC output | 4.5V/1A | 5V/2.5A | 12V/2.5A |
| Buzzer | Support |
| USB Type | Type-C |
| PCB Color | Matte black |
| Fixed hole spacing | 30.5*30.5mm/φ4mm |
| Dim(L * W * H) | 39.8*38.7*6mm |
| Weight | 9.5g |
