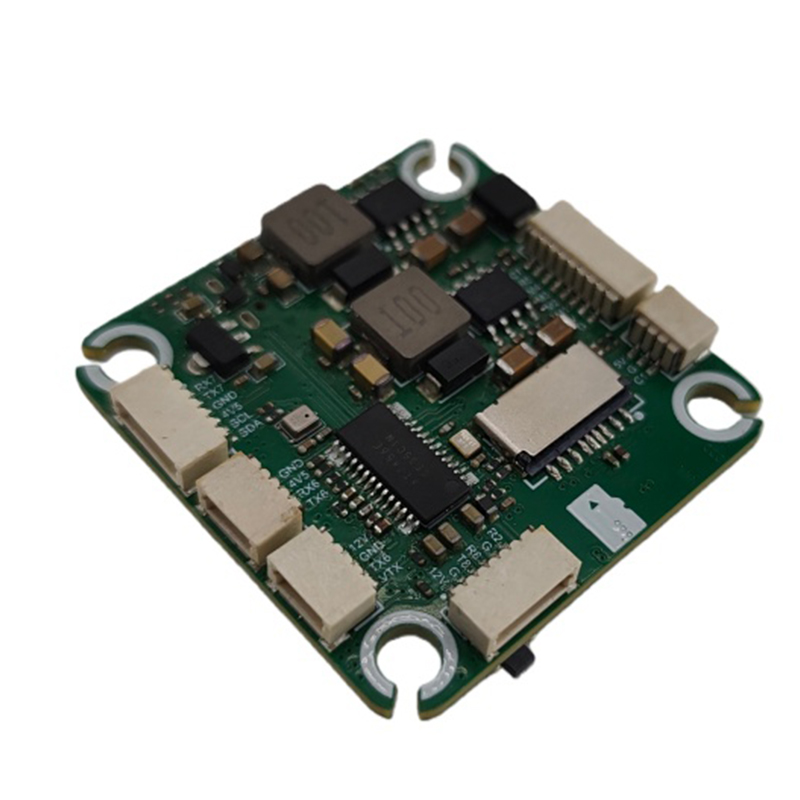

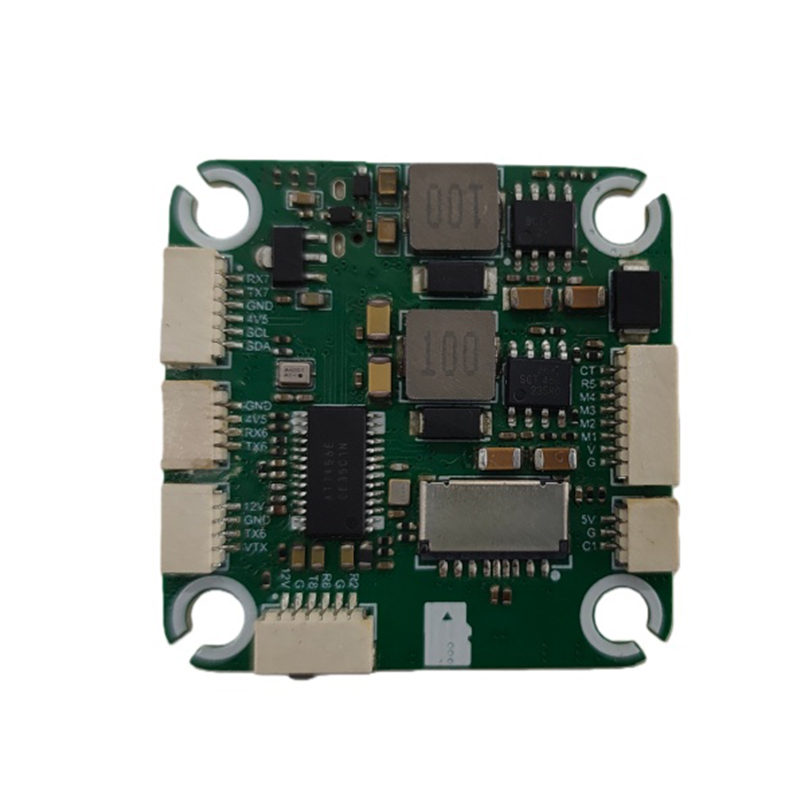

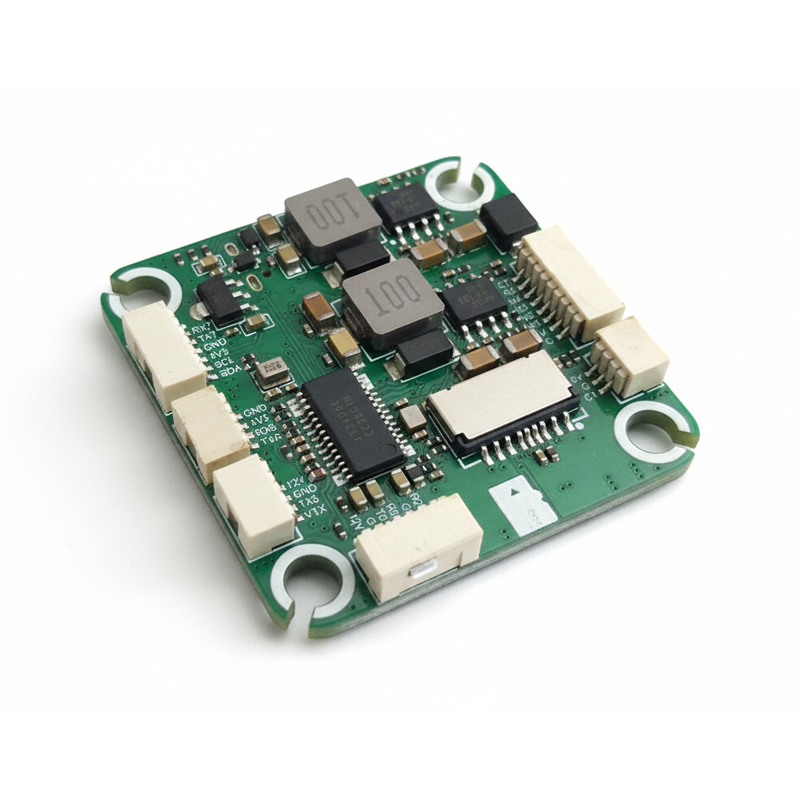

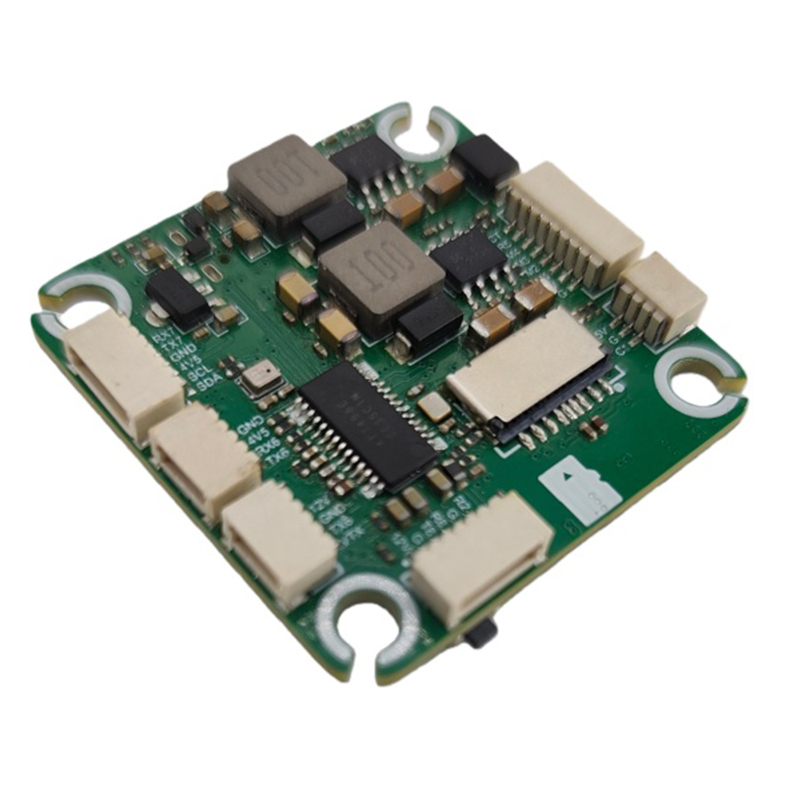

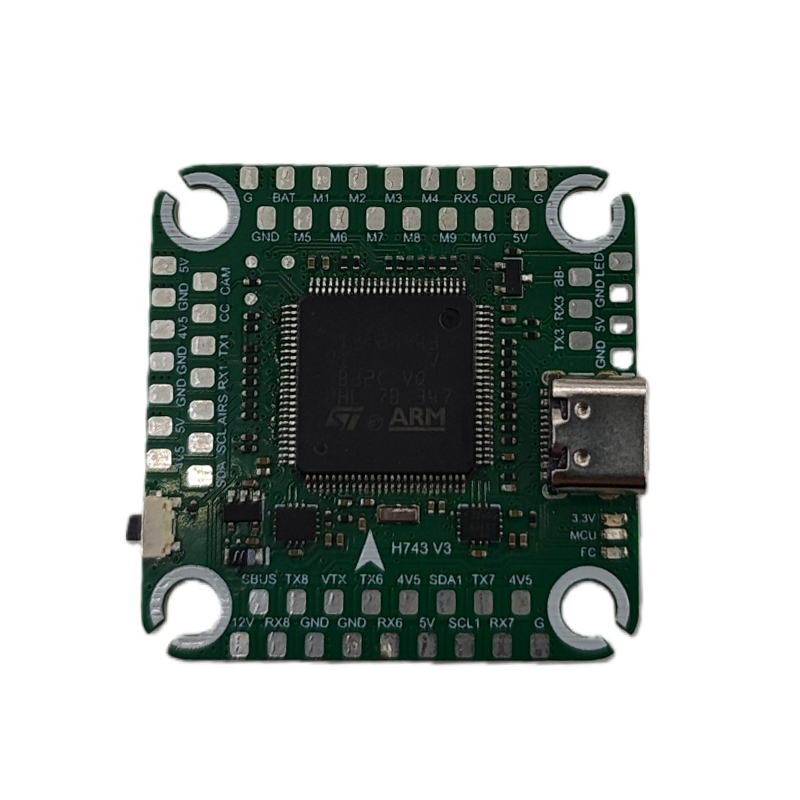

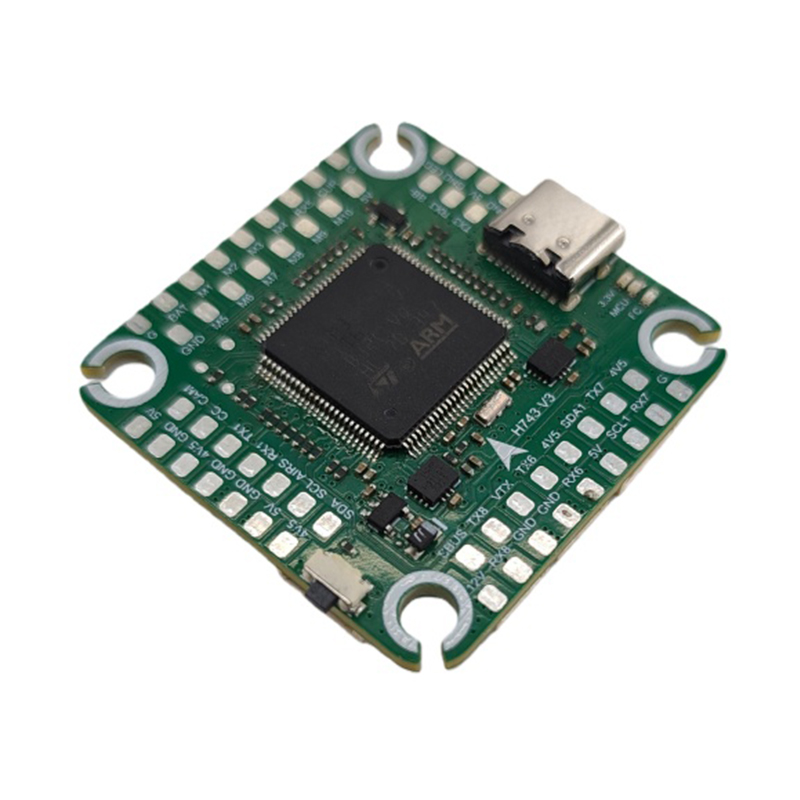

BiuDrone F743 V3 Flight Controller

The F743 V3 is a high-end flight controller built for demanding FPV and professional drone applications. Powered by a robust STM32F7-series MCU, it offers superior processing power for complex flight algorithms in Betaflight, INAV, or ArduPilot.

It features a premium ICM-42688 gyro for precise handling, a comprehensive set of six UARTs for extensive peripherals like GPS and telemetry, and a powerful 12V/2.5A BEC to reliably power HD systems and other equipment. With a 16M black box, integrated barometer, and a standard 30.5×30.5mm mounting pattern, the F743 V3 is engineered for performance, expandability, and reliability.

Apple Shopping Event

Hurry and get discounts on all Apple devices up to 20%

Sale_coupon_15

$55.00

19 People watching this product now!
  • Pick up from the Woodmart Store

To pick up today

Free

  • Courier delivery

Our courier will deliver to the specified address

2-3 Days

Free

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

Free

  • Warranty 1 year
  • Free 30-Day returns

Payment Methods:

Description
Product model F743 V3 flight control
MCU STN32F405RCT6
Firmware name BiuDrone743V3
Support firmware Betaflight (Factory default), INAV, ArduPilot
Input voltage 3-8S LiPo
Gyroscope ICM-42688
OSD chip AT7456E
Black box 16M
Barometer SPL06
GPS Interface Support
UART Serial Port Six
Telemetry input RS (UART5)
Receiver ELRS/CRSF/SBUS/Trsky/Putaba /Flysky/TBS CrossPre/DSAX
Image transmission Support
signal output 8CH
BBC output 4.5V/1A | 5V/2.5A | 12V/2.5A
Buzzer Support
USB Type Type-C
PCB Color Matte black
Fixed hole spacing 30.5*30.5mm/φ4mm
Dim(L * W * H) 39.8*38.7*6mm
Weight 9g
