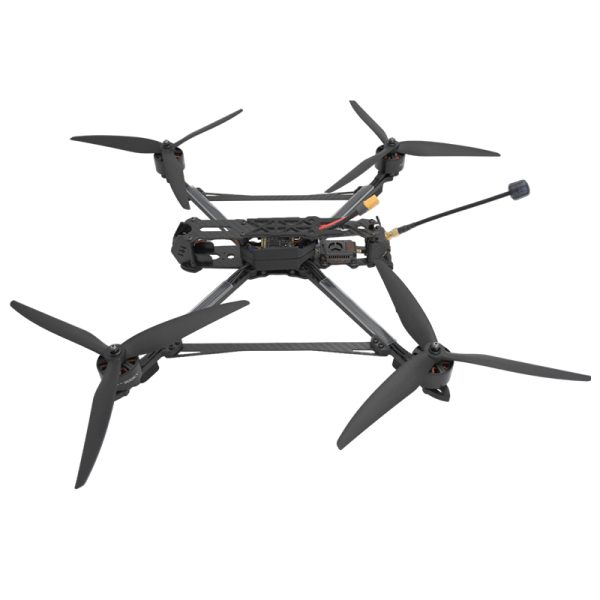

BiuDrone 10-inch FPV Drone with 5.8GHz VTX
Click to enlarge

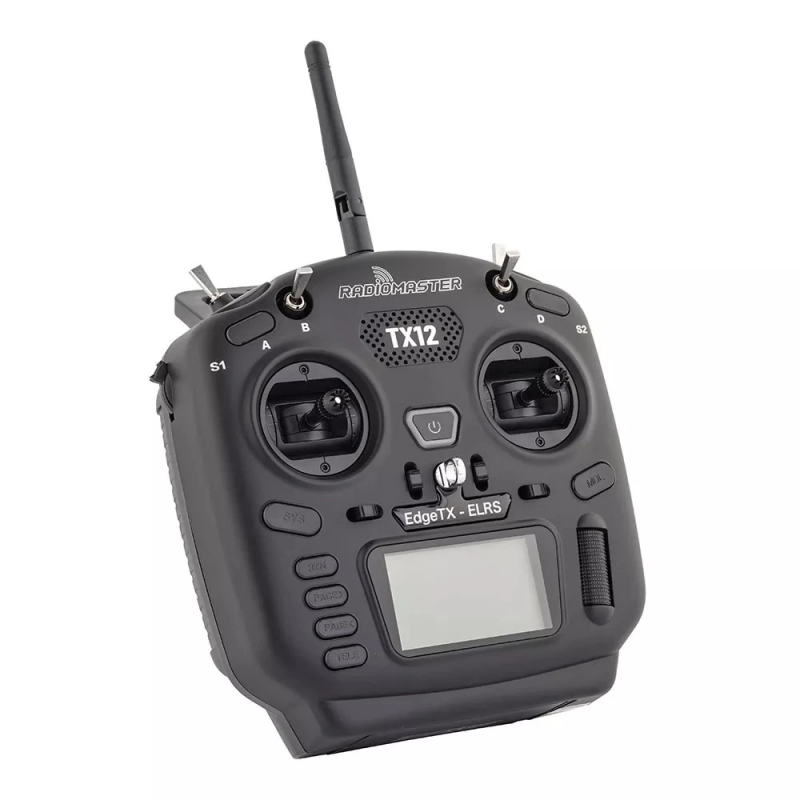

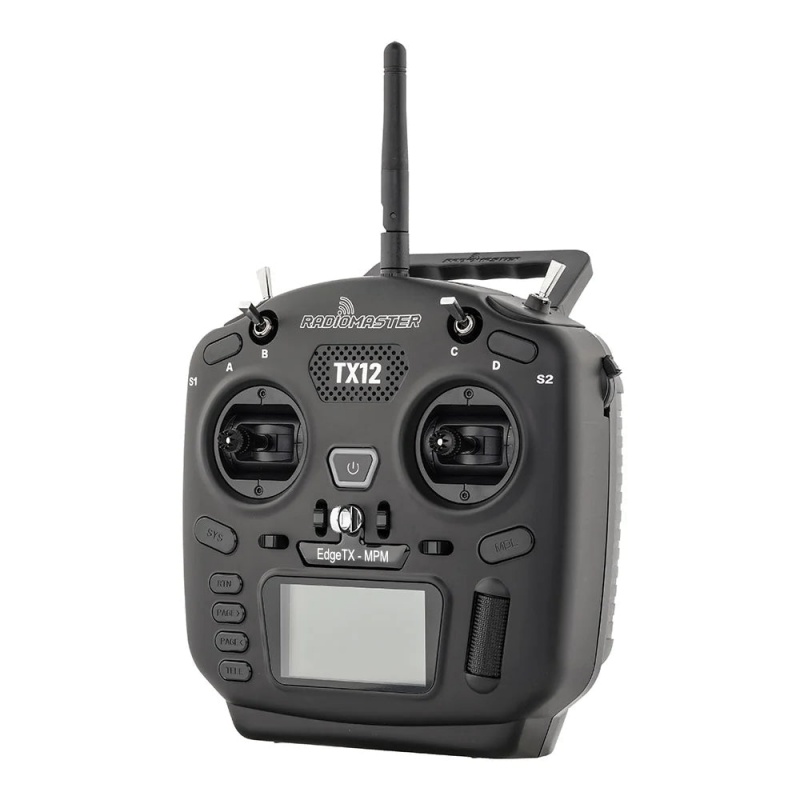

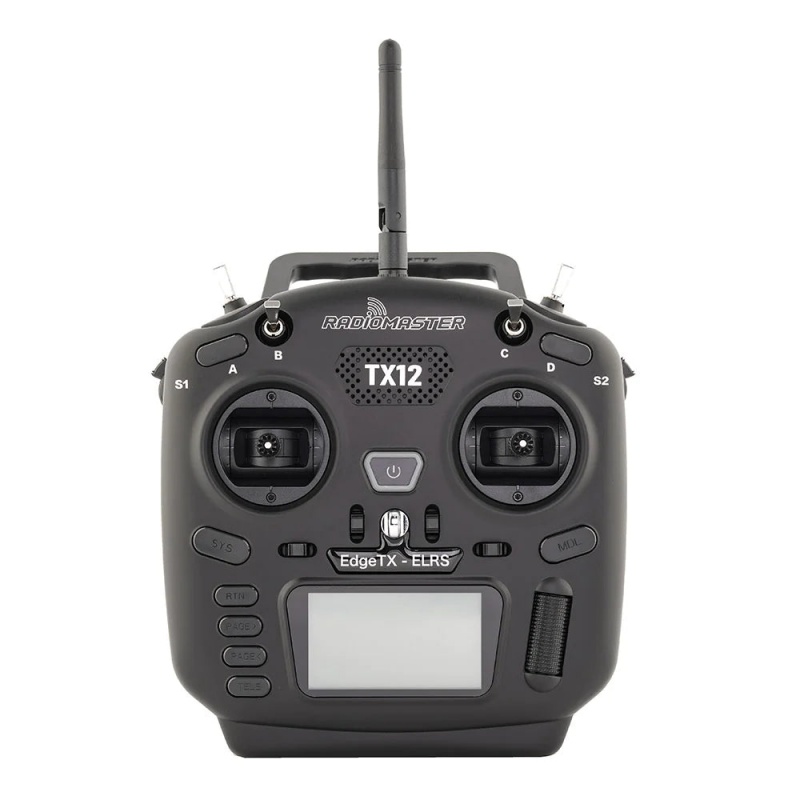

    RadioMaster TX12 Mark II Radio Controller

    Specification Parameter
    Size: 170*159*108mm
    Weight: 363 grams
    Transmission Frequency: 2.400GHz-2.480GHz
    Transmitter Module: Single Chip Multi-protocol High Frequency module (CC2500) / ExpressLRS Built-in Module (ELRS)
    Supported Protocols: Corona, Hitec, Futaba S-FHSS, Frsky D16/D8, RadioLink, Graupner HoTT et al. (Multi-protocol version)
    ExpressLRS (ELRS version)
    Working Voltage: 6.6-8.4v DC
    Open Source Firmware: EdgeTX (Remote control) / DIY Multi-protocol TX module (high frequency module) / ELRS
    Number of Channels: Up to 16 channels (depending on receiver)
    Display: 128*64 monochrome LCD display
    Joystick: Hall Edition
    External Module: JR/FrSKY compatible module socket
    Upgrade Mode: Support USB online / SD card offline upgrade

    Apple Shopping Event

    Hurry and get discounts on all Apple devices up to 20%

    Sale_coupon_15

    $285.00

    Compare
    Add to wishlist
    16 People watching this product now!
    • Pick up from the Woodmart Store

    To pick up today

    Free

    • Courier delivery

    Our courier will deliver to the specified address

    2-3 Days

    Free

    • DHL Courier delivery

    DHL courier will deliver to the specified address

    2-3 Days

    Free

    • Warranty 1 year

    More details

    • Free 30-Day returns

    More details

    Payment Methods:

    Description

    Features

    • Added ExpressLRS Backpack support
    • Updated main board design from STM32F207 to STM32F407
    • Improved USB-C QC 3.0 Charging
    • Precision hall-effect gimbals as standard
    • EdgeTX operating system installed from the factory

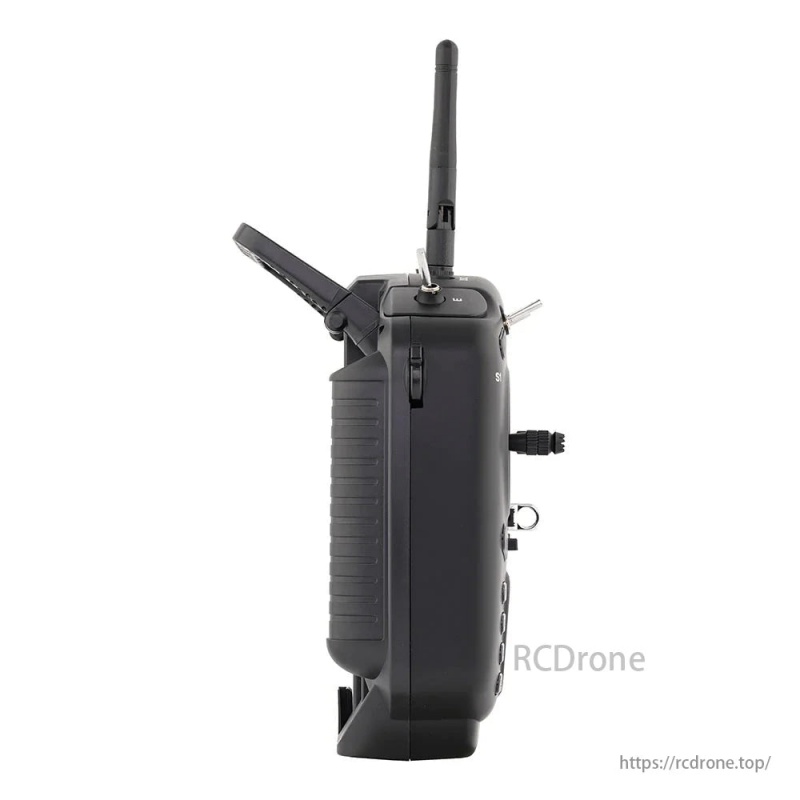

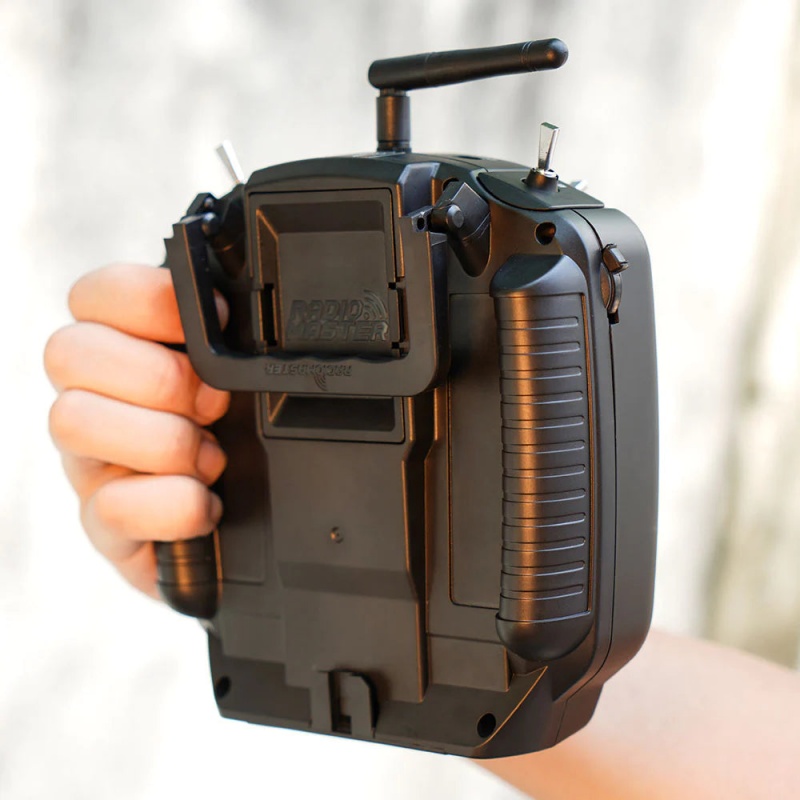

    • Updated rear case with comfortable grips
    • Improved S1 / S2 slider grip
    • SD Card included
    • Provide M1 and M2 modes

    EdgeTX Operating System

    Preinstalled with EdgeTX, the RadioMaster TX12 MKII has cutting-edge software that is constantly evolving and improving. RadioMaster works closely with the EdgeTX team to develop features and optimize the user experience. We will continue to contribute and support projects like EdgeTX, ensuring the concepts of open standards are carried forward.

    Supports System 824, EDGE-TX and OPEN-TX protocols for seamless integration with RadioMaster TX12 Mark II controller.

    Updated MCU STM32F407

    We have upgraded the main processor from STM32F207 to STM32F407.



    FCC Version and EU LBT Version are Available

    Currently, we provide the standard FCC version and the EU LBT version. Please check the supported protocols below.

    Standard FCC Version

    • CC2500 (FCC) Version supports all CC2500 protocols
    • ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)

    EU LBT Version

    • CC2500 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT & HoTT LBT
    • ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

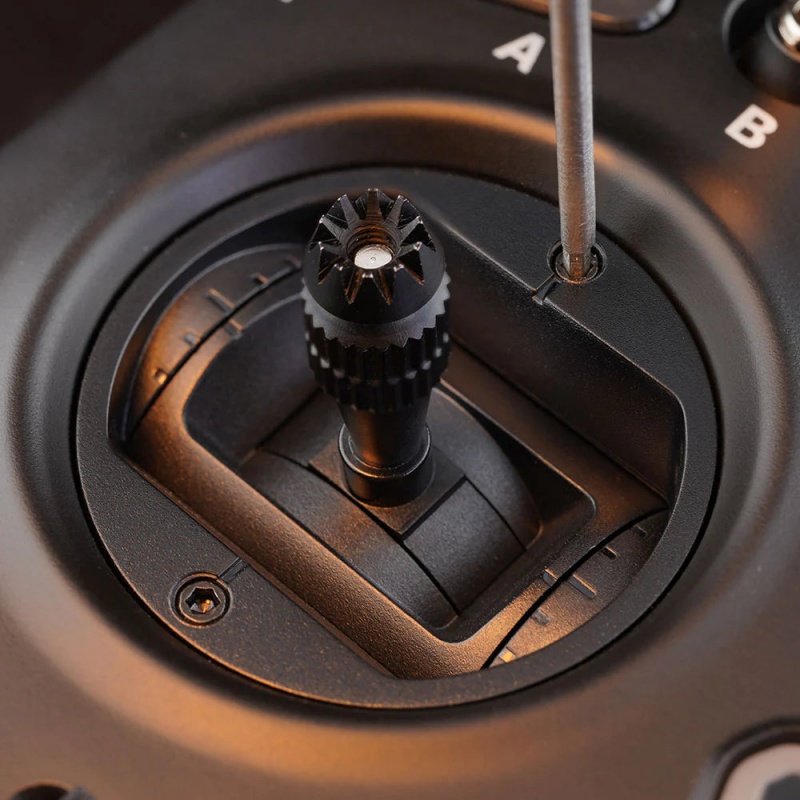

    New Hall Gimbals

    With Hall Gimbals, the same chipset as the AG01, optimized hall sensor circuitry, improves center point positioning and temperature stability.
